Best GPU for Ryzen 7 7800X3D in 2024
Which GPU should you pair with the market's best gaming CPU
WePC is reader-supported. When you buy through links on our site, we may earn an affiliate commission. Prices subject to change. Learn more
AMD’s Ryzen 7 7800X3D is one of the industry’s most powerful CPUs, surpassing all its rivals in terms of pure gaming performance. In fact, the 7800X3D is the best gaming CPU money can buy, delivering unrivalled gaming performance when compared to the latest models from both Intel and AMD. For that reason, the Ryzen 7 7800X3D demands a seriously powerful GPU pairing to run at optimal levels – especially if you don’t want to run into performance-limiting bottlenecks.
The 7800X3D is the second generation of AMD’s X3D CPU range, and while it may look pretty standard next to some of the other 7000 series CPUs, it has a secret weapon – a 3D-stacked V-cache. This cache allows the 7800X3D to be far more proficient in gaming workloads without the limitations found in the first generation of X3D chips. Essentially, you’re looking at a CPU that benefits from all the first-generation features that made the 5800X3D so great, with a layer of refinement added on top.
All being said, we’ll use our expert knowledge of GPUs and our vast experience reviewing some of the market’s leading cards to highlight the best GPU pairings for the Ryzen 7 7800X3D.
Products at a glance
-
Best GPU For Ryzen 7 7800X3D
RTX 5080 Founders Edition
- Core clock speed: 2.30 GHz (Base) 2.62 GHz (Boost)
- CUDA Core: 10,752
- Memory: 16 GB GDDR7
- Memory speed : 30 Gbps
- Power connector: 12V-2×6
- TBP: 360W
-
ASUS TUF Radeon RX 7900 XTX OC
- Core Clock Speed: 1,895 MHz base, 2,395 MHz shader & game, 2,565 MHz boost
- Stream processors: 6,144
- Memory Size: 24GB GDDR6
- Dimensions: 352.9 x 158.2 x 72.6 mm
- PSU Required: 850W
- TBP: 355W
-
Runner Up
Gigabyte RTX 4080 SUPER 16GB WINDFORCE V2
- Core clock speed: 2,550MHz boost, 2,295MHz base
- CUDA cores: 10,240
- Memory: 16GB GDDR6X
- Dimensions: 330 x 136 x 58 mm
- PSU required: 750W
- TBP: 320W
-
Value Pick
ASUS ROG Strix RTX 4070 Ti Super OC
- Core clock speed: 2,670MHz boost, 2,340MHz base
- CUDA count: 8,448
- Memory: 16GB GDDR6X
- Dimensions: 336 x 150 x 63 mm ( 13.22 x 5.9 x 2.48 inch)
- PSU required: 750W
- TBP: 285W
-
Budget Pick
AMD Radeon RX 7800 XT
- Core clock speed: 2,430MHz boost, 2,124MHz game
- Stream processors: 3,840
- Memory: 16GB GDDR6
- Dimensions: 267 x 111 x 50mm
- PSU required: 600W
- TBP: 263W
How we test the best GPUs for the 7800X3D
Here at WePC, testing and reviewing are the foundations upon which all of our recommendations are built. We only recommend products that we’ve either tested ourselves or have been tested by other respectable third-party reviewers – clearly highlighting the product’s performance in gaming and multi-tasking workflows.
We pride ourselves in creating high-quality content that speaks to the topic and offers helpful advice. with that in mind, we tested all the GPUs we recommend today in both synthetic and real-world scenarios to gauge overall performance. Being industry experts, we know how well the 7800X3D performs, and we made GPU choices based on relative performance and future-proofing.
We then considered other factors such as cost, build quality, and aesthetics to rank our picks for the best GPU for 7800X3D. If you’re interested in a detailed breakdown of our testing process, you can find one on our How we test GPUs page.
X3D is complicated – One CCD vs two CCDs
The first generation of X3D CPUs came in the form of the 5800X3D, which worked wonders in games but was very limited in workloads that aren’t purely gaming. This was due to the 3D V-cache being sensitive to high temperatures and frequencies, so AMD decided to get rid of any overclocking capabilities the CPU had to keep clock speeds and temperatures low.
The second generation has improved on this by having a dual CCD setup, whereas the first generation only had one. This way, only half of the 7800X3D is limited by the restrictions that the 3D V-cache places on the CPU.
Best GPU for Ryzen 7 7800X3D: our reviews
Here we have rounded up some of our top GPU recommendations that pair perfectly with the 7800X3D, designed to support the mighty vertically stacked 3D cache that this CPU brings to the table.
- Core clock speed: 2.30 GHz (Base) 2.62 GHz (Boost)
- CUDA Core: 10,752
- Memory: 16 GB GDDR7
- Memory speed : 30 Gbps
- Power connector: 12V-2×6
- TBP: 360W
The RTX 5080 is arguably the best GPU we’ve seen—second only to the RTX 5090. Harnessing AI-powered performance, it delivers exceptionally high frame rates with ease. If you have a high-refresh-rate monitor and want to push serious FPS, this card offers strong value. At $1,000, it’s still a hefty investment, but considering how it outclasses the 4080 while launching at a lower MSRP, we’d say it’s worth it.
- Incredible performance in DLSS 4-enabled games
- MFG facilitates unheard-of performance
- 2 slot card makes a nice change from 4
- Relatively cool thanks to re-designed cooling mechanisms
- looks sleek and stylish
- Rasterization performance uplift pales in comparison to DLSS and MFG performance.
- Strong focus on AI means you get less value if you only play games that cannot utilize DLSS.
- Still expensive
The RTX 5080 is a powerhouse GPU that pairs exceptionally well with the Ryzen 7 7800X3D, delivering top-tier performance in both high-refresh 1440p and smooth 4K gaming. Built on Nvidia’s Blackwell architecture, the RTX 5080 features 10,752 CUDA cores, 16GB of GDDR7 memory, and a massive 960 GB/s memory bandwidth. These improvements over the previous generation translate to significantly higher frame rates, better ray tracing performance, and improved efficiency, making it an excellent choice for those looking to push their gaming experience to the next level.
When combined with the 7800X3D, the RTX 5080 fully uses its AI-driven enhancements like DLSS 4, ensuring smooth frame rates even in the most demanding scenarios. Benchmarks show the RTX 5080 achieving well over 150 FPS at max settings in 1440p gaming, with 4K performance remaining consistently strong thanks to improved frame generation and upscaling technologies. The 7800X3D’s 3D V-Cache complements the GPU by reducing CPU bottlenecks, especially in CPU-intensive games, leading to better frame pacing and overall smoother gameplay. This makes the RTX 5080 a great choice for gamers who want both raw power and efficiency in their setup.
In our review of the 5080, Counter-Strike 2 sees a major uplift, with the RTX 5080 reaching 343 FPS on average at 1440p (outpacing the RTX 4080’s 303 FPS) while holding a strong 240 FPS in the 5th percentile, ensuring fluid responsiveness in competitive play. At 4K, the 5080 extends its lead further, averaging 186 FPS with strong percentile performance, maintaining a smoother experience under heavy load. Cyberpunk 2077 also showcases the card’s raw power, where at 1440p, the 5080 achieves 151 FPS, significantly outpacing the 4080’s 126 FPS. Even at 4K, it sustains 72 FPS on average (a 26% improvement), making native 4K gaming far more viable without heavy reliance on upscaling.

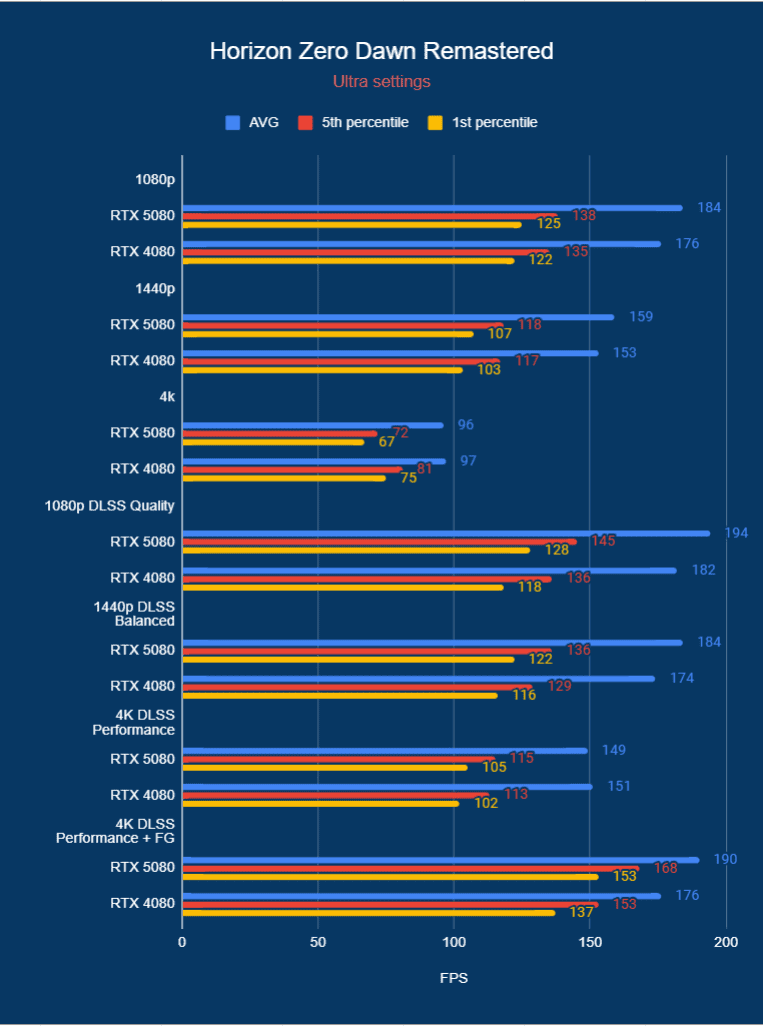

In titles leveraging Nvidia’s AI-driven enhancements, the 5080 continues to shine. Horizon Zero Dawn Remastered, with DLSS Performance mode, maintains 149 FPS at 4K but jumps to 190 FPS when Frame Generation is enabled, showcasing the benefits of Nvidia’s latest rendering technologies. Similarly, Shadow of the Tomb Raider runs at 138 FPS natively at 4K, and when ray tracing is enabled, the 5080 sustains 91 FPS compared to the 4080’s 83 FPS. Star Wars Outlaws further highlights the potential of multi-frame generation, where enabling MFG 4x at 4K allows the 5080 to soar to 169 FPS, eclipsing the 4080’s 117 FPS.
This performance leap extends beyond gaming, with synthetic benchmarks reinforcing the 5080’s advancements in ray tracing and compute workloads. Fire Strike Ultra sees a 34% uplift, and Time Spy Extreme posts a 24% improvement over the 4080. Ray tracing-heavy tests like Port Royal show a 31% jump, emphasizing the 5080’s architectural efficiency. With these gains, the RTX 5080 not only maximizes the potential of the 7800X3D but also delivers a level of future-proofing that ensures top-tier performance for years to come.
- Core Clock Speed: 1,895 MHz base, 2,395 MHz shader & game, 2,565 MHz boost
- Stream processors: 6,144
- Memory Size: 24GB GDDR6
- Dimensions: 352.9 x 158.2 x 72.6 mm
- PSU Required: 850W
- TBP: 355W
- Memory Clock: 20 Gbps
- Memory Bus: 384-bit
- Card Bus: PCIe 4.0 x16
- Output: 1x HDMI 2.1, 3x DP 2.1
- Power Connectors: 3 x 8-pin
The 7900 XTX is a fantastic GPU if you’re looking for the best that AMD has to offer, but without the massive price tag of the RTX 4090, and the illusive 50-series. AMD does very well with creating great price-to-performance ratios and manufacturing robust components. The TUF is no different. If you want the best that AMD currently has to offer without breaking the bank, the 7900 XTX is the card for you.
- Factory overclocked for higher frame rates
- Impeccable build quality
- Robust cooling solution keeps temps in check
- Solid design that suits most builds
- Premium price tag – but nowhere near the 4090
- Physically large, rendering it unusable with many smaller cases
If you’re searching for the best graphics card for the Ryzen 7 7800X3D, then the ASUS TUF RX 7900 XTX OC is hard to beat. It offers performance benchmarks that sit right at the top of the market’s GPU hierarchy and gives the RTX 4090 a run for its money in certain situations. While this card hits shelves with a high price tag, the best bit is that it is considerably cheaper than the market’s only other “better” GPU – making it a standout option for gamers who love bang for their buck.
The 7900 XTX is built on AMD’s latest RDNA 3 architecture that, alongside improving gaming performance, efficiency, and visuals, also featured the world’s first chipset-based GPU design. AMD has equipped the flagship 7900 XTX with 24 GB of GDDR6 memory that connects using a 384-bit memory interface – resulting in excellent high-resolution gaming and multitasking performance.
In our comprehensive review of the 7900 XTX, we ran the 7900 XTX OC through many games and synthetic benchmarks to see how it stacked up against its leading rivals. It’s safe to say that the ASUS TUF 7900 XTX OC performed to an incredibly high standard, pushing close to 100 frames per second in almost every game we threw at it. Of course, there were some anomalies – such as Cyberpunk 2077 , which only netted 44 FPS @ 4K on average. Take that benchmark with a pinch of salt, though, as the game was still in its early stages and hadn’t received the patches or driver updates that we have today. Regarding ray tracing, the 7900 XTX OC was capable of running many titles with RT enabled @ 4K – with games like The Finals and Shadow of The Tomb Raider pushing 70-80 FPS, respectively.
All being said, the 7900 XTX OC model is easily one of the best GPUs on the market and, due to its excellent price-to-performance MSRP, is a fine choice for any 7800X3D build.
- Core clock speed: 2,550MHz boost, 2,295MHz base
- CUDA cores: 10,240
- Memory: 16GB GDDR6X
- Dimensions: 330 x 136 x 58 mm
- PSU required: 750W
- TBP: 320W
- Memory clock: 23 Gbps
- Memory bus: 256-bit
- Card bus: PCIe 4.0 x16
- Output : 1x HDMI 2.1, 3x FP 1.4a
- Power connectors: 1x 16-pin
The Gigabyte RTX 4080 Super is the successor to the brand’s less-than-popular RTX 4080, offering up enthusiast-level performance to high-end consumers. This card was priced so well on launch that it made its predecessor entirely obsolete – outperforming it in terms of performance, efficiency, and overall value for money.
- Top performance across the board
- Plenty of features and additions available to utilize
- Simple and sleek design
- Excellent cooling capabilities
- Still features at the high-end of the price spectrum
- Large and bulky – may not fit in smaller builds
If our top pick doesn’t take your fancy, then maybe the RTX 4080 Super will. Regarding raw performance, the RTX 4080 Super is the successor to the brand’s RTX 4080 – a GPU that has since become obsolete due to the gaming performance, efficiency, and value for money that the 4080 Super offers.
The RTX 4080 Super was the high-end model in the brand’s mid-lifecycle refresh of the 40-series Ada generation. While most of the cards in this range focused on a raw performance uplift over their predecessor, that wasn’t the case for the RTX 4080 Super. Instead, the brand focused more on repositioning its MSRP to increase the overall value-to-performance metrics. The result was a GPU that was around 20% cheaper than its predecessor while offering a small uplift in performance in gaming and creative workloads.
Speaking of gaming, it’s safe to say that the RTX 4080 Super is positioned to target the latest AAA games at max settings. In fact, during the gaming benchmark section of our RTX 4080 Super review, we were pleasantly surprised by the overall performance it offered and the uplift it saw over the now-redundant RTX 4080. If you look below, you’ll see our in-depth benchmark results for both the RTX 4080 and Super variants, with the Super, more often than not, coming out on top.
RTX 4080 vs RTX 4080 Super: The finals
RTX 4080 vs RTX 4080 Super: SOTTR
RTX 4080 vs RTX 4080 Super: Doom Eternal
RTX 4080 vs RTX 4080 Super: Cyberpunk 2077
- Core clock speed: 2,430MHz boost, 2,124MHz game
- Stream processors: 3,840
- Memory: 16GB GDDR6
- Dimensions: 267 x 111 x 50mm
- PSU required: 600W
- TBP: 263W
- Launch price: $499
- Availability: September 6th, 2023
- GPU Name: NAVI 32
- Architecture : RDNA 3
- Process size: 5 nm
- Die size: 346mm
- L3 Cache: 64 MB
- Bandwidth: 624.1 GB/s
- Memory Bus: 256 bit
- Compute units: 60
- RT Cores: 60
While the 7800 XT is by no means the cheapest card on the market, is still secures our budget pick when the 7800X3D is the CPU of choice. The 7800 XT is one of the best price-to-performance GPUs in AMD’s RDNA 3 lineup, producing decent framerates in AAA games at 1440p. Despite being branded as a 1440p card, it’s worth noting that the 7800 XT does produce playable FPS when running lesser-demanding titles in 4K.
- Excellent price to performance
- Subtle design that fits almost any build
- One of the few dual-slot recommendations in this guide
- Doesn’t offer the best RT performance
- Soon-to-be-superseded by AMD’s new line of cards
If you’re looking for a more budget-tailored option, then AMD’s RX 7800 XT is a fine choice, as it hits shelves considerably lower than anything in this guide. Better yet, AMD’s mid-tier GPU is a great pick for most mainstream gamers – as the 1440p resolution continues to gain popularity in the Steam Hardware Survey.
Like our top pick, the RX 7800 XT is also based on the RDNA 3 graphics architecture, taking full advantage of the 5 nm EUV foundry node for its Compute Units and other graphical rendering machinery. At launch, the card debuted the new Navi 32 silicon – a chipset-based GPU that separates specific components of the GPU that benefit the most from the newer node. With 16 GB of GDDR6 VRAM and access to max out Navi 32, the 7800 XT provides decent efficiency and excellent performance across various games and synthetics.
During our review of the AMD RX 7800 XT, we found that the card offered well over 100 frames per second in most AAA games when running at 1440p resolution. What surprised us the most, however, was its 4K gaming performance – where a number of less-demanding titles managed to eclipse 60 FPS.
Ultimately, this card isn’t the most powerful option out there – but it’s not the weakest either. If you’re looking to play games in 1440p or just want high, stable frames in competitive titles like CS2, this could be a great option.
Things to consider when buying a GPU for the Ryzen 7 7800X3D
There are a few things to take into consideration when selecting a GPU for the 7800X3D, we’ve outlined a few of the most important ones below:
Future-proofing your build
While AM5 isn’t going anywhere anytime soon, the 7800X3D is about to be superseded by the 9800X3D. If you would like to upgrade to this processor in the future, the good news is it remains on the same AM5 platform, so you don’t have to upgrade your motherboard unless you want to.
You might want to consider slightly overshooting GPU compatibility with the 7800X3D to make your GPU more compatible with the 9800X3D – and future hardware. So, instead of opting for the middle-of-the-pack, you might want to pick up something with a little more rendering power.
Ray tracing performance
While ray tracing performance has improved substantially on AMD’s 7000 series against the previous generation, it still pales compared to what Nvidia GPUs are capable of. If ray tracing matters, you might be better off shelling out slightly more for an Nvidia GPU – there is no current comparison.
Power efficiency
By design, the 7800X3D is a fairly efficient processor, consuming no more than 54W when tested in games. With this in mind, you might want to pair your CPU with a more power-efficient GPU. This has the benefit of using less energy and keeping high temperatures in check, which the 3D v-cache hates so much.
Lower power and thermal demands also help when building in smaller cases or a house or office with bad airflow – Continuously maintaining your PC greatly improves its longevity.
Is the Ryzen 7 7800X3D the best gaming CPU?
When writing this, the 7800X3D is easily one of the best gaming CPUs on the market. In fact, it’s so good that even AMD stated that its newest lineup of 9000 series chips wouldn’t be able to compete with it on pure gaming performance alone. The reason for this, as we’ve alluded to, is the 3D V-cache it comes equipped with. In total, the Ryzen 7 7800X3D offers 96 MB of 3D V-Cache – increasing the CPU available cache memory, which leads to faster calculations and quicker access to in-game elements.
Will the Ryzen 7 7800X3D bottleneck my GPU?
Being one of the best gaming CPUs on the market, the answer to that is fairly simple – not really. Even if you’re running an RTX 4090, the chances of it being bottlenecked by the 7800X3D in gaming scenarios is extremely slim. In fact, regardless of whether the 7800X3D will bottleneck your GPU or not, it’s still the fastest CPU on the market – meaning it has the least chance of bottlenecking you when comparing it to market alternatives.
Final word
For us, the AMD RADEON RX 7900 XTX OC is the best GPU for the Ryzen 7 7800X3D – and for good reason. While it isn’t the fastest GPU on the market (that crown goes to the RTX 4090), it is one of the GPU industry’s best price-to-performance prospects. Not only does it do almost everything the RTX 4090 does, but it also comes in at a significantly lower price point.
Having said that, we understand that not everyone has the cash to splash on such premium-level hardware. That’s why we’ve added more budget-tailored options into this guide, such as the RTX 4070 Ti and 7800 XT. Both these GPUs deliver decent performance for people looking to target 1440p gaming. Overall, whichever graphics card you choose, know that it’s in very good hands when paired with the 7800X3D.
